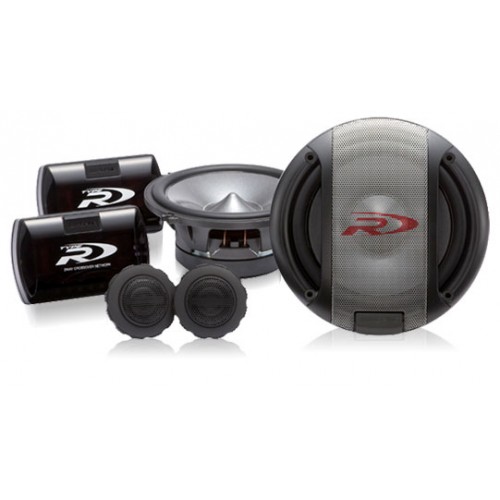

Car Audio System - Alpine - Speakers SPR - 13S

Features

• Frame: Rigid Custom Cast Aluminum Frame
• Mounting: Shallow Mounting Design
• Magnet: High Grade Strontium Magnet
• Cooling: Optimized Air-Flow Design
• Voice Coil Type: Large Square-Wire Short Voice Coil
• Motor Technology: Linear Drive Technology
• Cone Material: Varnish Multi-Layer Cap & Cone
• Dustcap Detail: Kevlar Reinforced, Phase Integrated Dustcap

• Magnet Material: Ultra Low Distortion Magnet Design
• Mounting Detail: Swivel Tweeter Mounting Kit
• Mounting Design: Shallow Mounting Design
• Tweeter Type: Bright, Crisp 1" Ring Tweeter with Resonance Absorber

• Mounting: Easy-Mount Screw Terminals
• Attenuation Control: 7-Level Tweeter Attenuation
• Case Design: Sleek Crossover Case
• Grade: Professional Grade Network

Specifications

• Crossover Size (in): 4-9/16" x 2-7/8" x 1-1/4"
• Crossover Size (mm): 115.4mm x 73mm x 32mm
• Woofer Mounting Depth (in): 2-5/32"
• Woofer Mounting Depth (mm): 55mm
• Woofer Mounting Diameter (in): 4-19/32"
• Woofer Mounting Diameter (mm): 117mm
• Tweeter Mounting Depth (in): 3/4"
• Tweeter Mounting Depth (mm): 18.3mm
• Tweeter Mounting Diameter (in): 2"
• Tweeter Mounting Diameter (mm): 51mm

• Sensitivity: 86dB /W(1m)
• Impedence: 3.6 Ohms
• Frequency Response: 70Hz - 27kHz

• Power Handling Capacity (Peak): 300 Watts
• CEA-2031 Power Rating: 100 Watts
